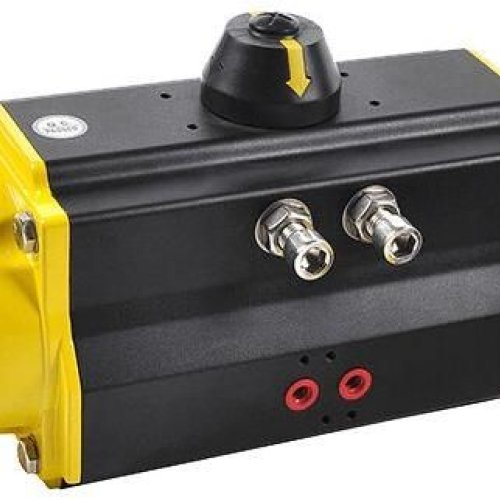

Pneumatic Actuator
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Air Suply | @4 to 7 Bar |
| Minimum Air suply | 5kg/cm2 |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Actuator Design
ISO 5211
Position On Air Failur in Double Acting
Stay Put Condition
Position On Air Failure in Single Acting
Close (Air to open – Spring to Close)
Brand Name
Avion
Specification
| Model | 2.0 Bar | 2.5 Bar | 3.0 Bar | 4.0 Bar | 4.5 Bar | 5.0 Bar | 5.5 Bar | 6.0 Bar | 7.0 Bar | 8.0 Bar |
| PT052 | 8 | 10 | 12 | 16 | 18 | 20 | 22 | 24 | 28 | 32 |
| PT063 | 15 | 18 | 22 | 29 | 33 | 36 | 40 | 44 | 51 | 58 |
| PT075 | 20 | 25 | 30 | 40 | 45 | 50 | 55 | 60 | 70 | 80 |
| PT083 | 31 | 39 | 47 | 63 | 70 | 78 | 86 | 94 | 111 | 125 |
| PT092 | 45 | 65 | 68 | 90 | 102 | 113 | 124 | 135 | 158 | 181 |
| PT105 | 66 | 83 | 99 | 132 | 149 | 165 | 182 | 198 | 231 | 264 |
| PT125 | 100 | 125 | 150 | 200 | 226 | 251 | 276 | 301 | 351 | 401 |
| PT140 | 171 | 214 | 256 | 342 | 385 | 427 | 470 | 513 | 598 | 682 |
| PT160 | 266 | 332 | 399 | 532 | 598 | 665 | 731 | 798 | 931 | 1064 |
| PT190 | 420 | 532 | 638 | 851 | 958 | 1064 | 1170 | 1270 | 1490 | 1702 |
| PT210 | 532 | 664 | 798 | 1064 | 1197 | 1330 | 1463 | 1596 | 1862 | 2128 |
| PT240 | 769 | 962 | 1154 | 1539 | 1731 | 1924 | 2116 | 2308 | 2693 | 3078 |
| PT270 | 1170 | 1462 | 1750 | 2339 | 2632 | 2924 | 3216 | 3509 | 4094 | 4579 |
| PT300 | 1526 | 1908 | 2289 | 3052 | 3434 | 3815 | 4197 | 4578 | 5341 | 6104 |
| PT350 | 2285 | 2856 | 3427 | 4570 | 5141 | 2712 | 6283 | 6854 | 7997 | 9139 |
| PT400 | 3256 | 4070 | 4884 | 6512 | 7326 | 8140 | 8954 | 9768 | 11396 | 13024 |
